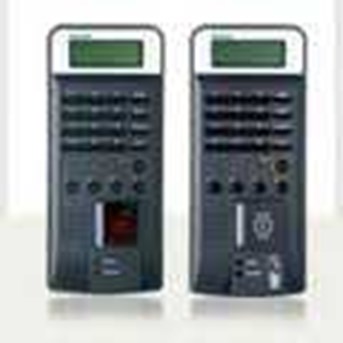

Detail Fingerprint Nitgen NAC2500
PT. Trikomindo Utama Network adalah authorized reseller fingerprint nitgen korea
Nitgen NAC2500 :
Capable of supporting various communication protocols, it can be used in numerous applications areas.
TCP/ IP : compatible with access manager ( OPTION)
RS-485 : Functions with your company’ s custom controller
Wiegand
- IN : Function with card readers currently in use
- OUT : Provides various portions of formats, User ID or Card ID output
Suitable for employees’ work hour management with the function keys provided
- Provides four separate keys / Keys can be used in combination
- ( starting work and finishing work, going out, returning to work, etc)
Enhanced user configuration feature ( ID digits, sensor option, operating mode, etc )
Enhanced User Convenience
- Auto-on ( M / R Type)
- Provides Shortcut ID/ Group Matching Feature ( M / R Type)
- LCD : 2 line graphic LCD ( supports various languages)
- LED : Status LED 2EA, Authentication result LED 1EA
- Voice Guide : Voice Output
Supports various authentication media, making it possible to configure as required by different security methods.
- Fingerprint / Password / RF Card ( OPTION : HID, MIFARE) , combined use is possible
Material ABS
Size 90 ( W) * 205 ( L) * 50 ( H)
Sensor Type Optical
Resolution 500 [ DPI]
Authentication 1: 1, 1: N, Short ID matching 1: 1 matching
Fact Fingerprint, Password,
RF Card Fingerprint, Password,
MIFARE SoC Password, RF Card
Time Less than 1 sec
Operation SO Stand-alone
NL Server matching Terminal matching
Environment Temperature -20 ~ 60 [ ° C]
Power 12 / 24 [ V]
Maximum number of registrations 2, 000users
( 1fingerprint per 1 user) 20, 000users 10, 000Users
Log 3, 000ea
Authentication Rate FRR : 1/ 1, 000 FAR : 1/ 100, 000
Function Key F1 / F2 / F3 / F4
Communication TCP/ IP, Wiegand Input/ Output, RS-485
Certification MIC, CE, FCC
